120V SPST 40A, 24HR MECHANISM ONLY

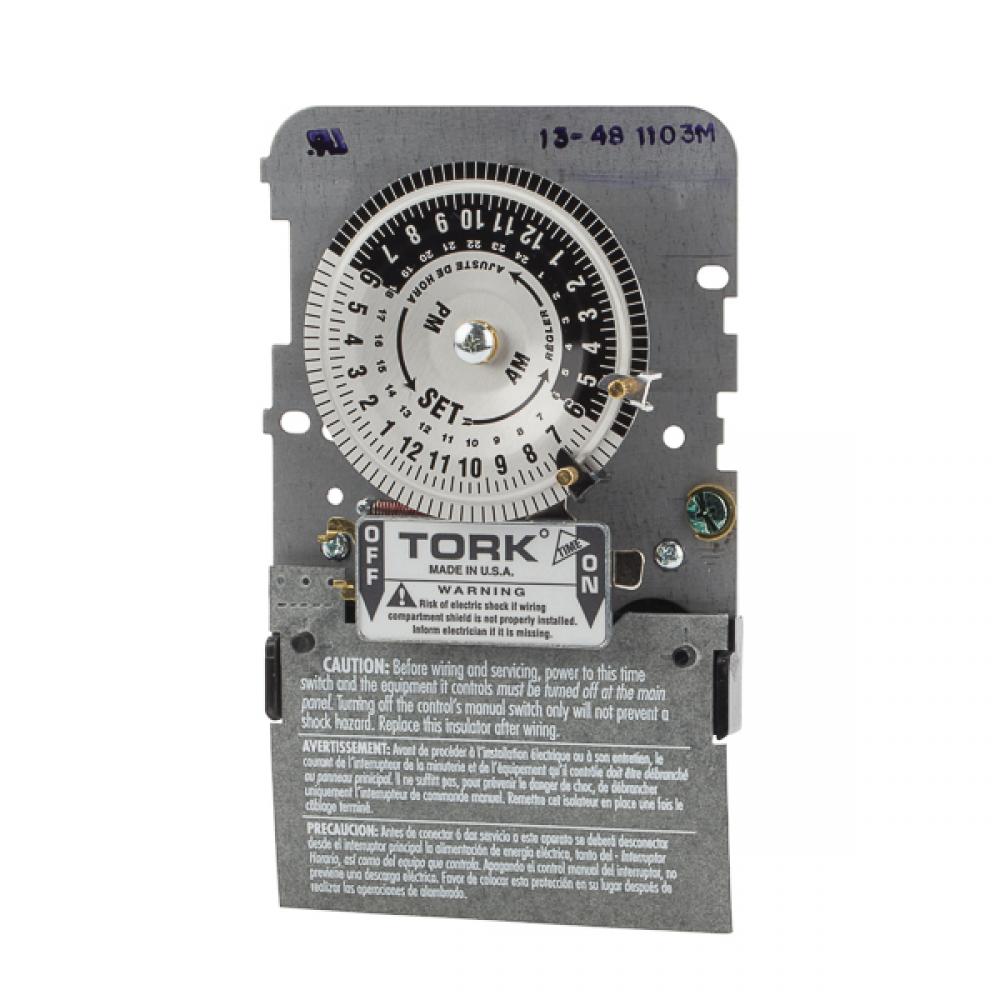

Tork 24 Hour Time Switch Mechanism Only APPLICATIONS: Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans FEATURES: INPUT VOLTAGE: 120 VAC 60 Hz OUTPUT CONTACTS: SPST TIMING ACCURACY: Line frequency TRIPPERS: Comes with (1) set of trippers (1 ON and 1 OFF). Additional trippers can be purchased under Part # P47 . ASTRONOMIC CONVERSION: The 1101 can easily be converted into an Astronomic Timer with the addition of the astronomic dial assembly Part # Z-KIT (Choose your degrees latitude to complete number (18, 30, 24, 38, 40, 42 or 45. Sold Separately). Details can be found under the Extended Information tab. TERMINAL RANGE: #8 - #14 AWG OPERATING TEMPERATURE: - 40 degrees to 165 degrees F (-40 degrees to +74 degrees C) POWER CONSUMPTION: 3 watts maximum ENCLOSURE: Mechanism OTHER MOUNTINGS: Intermatic degrees Adaptor Plate model #IAP allows any 1100 series to fit into an Intermatic case. BRAND EQUIVALENT: Intermatic T101M MANUFACTURER: Tork, UPC: 786261100221 CONTACT RATINGS: GENERAL PURPOSE: 120VAC Single Phase. Contact Rating 40A RESISTIVE: 120VAC Single Phase. Contact Rating 40A TUNGSTEN: 120VAC. Contact Rating 40A INDUCTIVE: 120VAC Single Phase. Contact Rating 20A PILOT DUTY: 120VAC. Contact Rating 1000VA MOTOR: 120VAC Single Phase. Contact Rating 2HP
