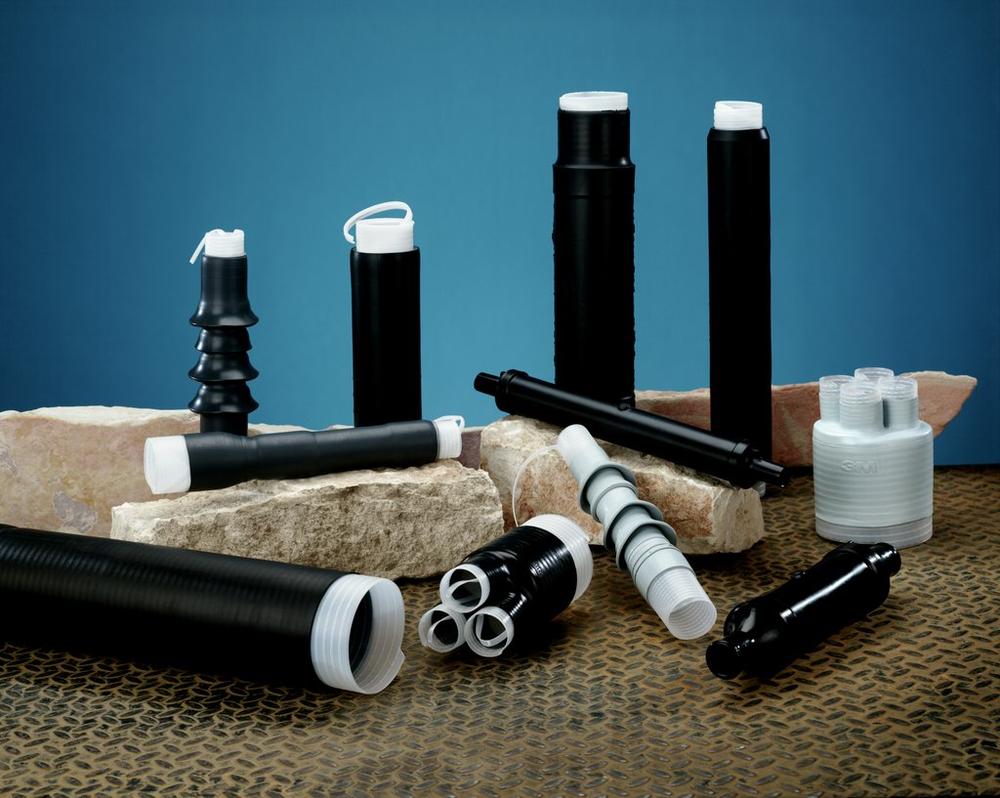

The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).

Specifications

Details

Electrical Category:

Wire And Cable

Electrical Subcategory:

Cable Accessories

Electrical Subtype:

High Voltage Cable Joining Kit

Brand Name:

Brochure:

Manufacturer Brochure

Cable Type:

Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield

Conductor Size:

250 kcmil; 350 kcmil; 4/0 AWG; 500 kcmil

Connector:

None

Country Of Origin:

USA

Installation Link:

Installation Instructions

Lead Time:

2.000 DA

Length:

25.7000 IN

MsdsURL:

http://images.salsify.com/image/upload/s--DXpJ4K9s--/kb8etp3grzfwp5zc4sjq.pdf

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Contact Manufacturer

Spec Sheet:

Spec Link

Stock Type:

Shelf Stock

Tech Drawing Link:

Tech Drawing

Type:

Inline

UNSPSC:

26121649

Voltage Rating:

15 kV

Weight:

8.200 L
