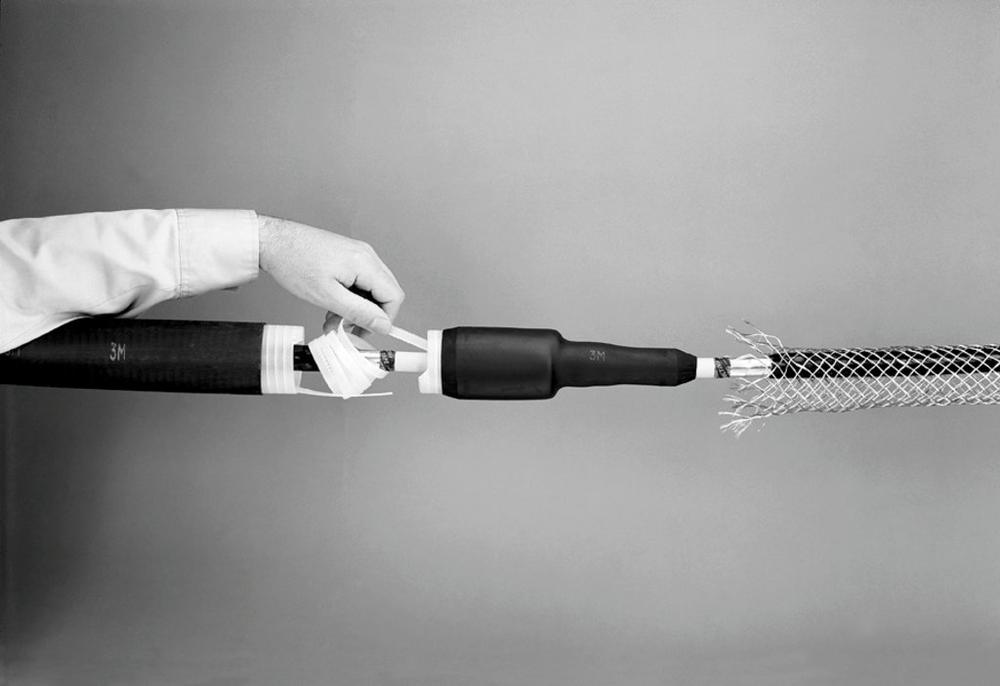

3M™ Cold Shrink Shielded Splice Kit 5550 Series are for splicing 5 kV and 8 kV shielded, solid dielectric, power cables. Meets requirements of IEEE 404. Each kit contains all the materials (except connectors and optional ground strap) required to construct three (3) single conductor splices on Tape Shield, Wire Shield or UniShield® cables. Note: The kit can also be used to splice a shielded to a non-shielded 5/8 kV cable. Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.

Specifications

Details

Electrical Category:

Fittings and Hardware

Electrical Subcategory:

Electrical Hardware And Supplies

Electrical Subtype:

Cable Splicing Kits

Brand Name:

Cable Size:

250 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil (Cu Only)

Country Of Origin:

USA

Installation Link:

Installation Instructions

Lead Time:

2.000 DA

Length:

25.9600 IN

MsdsURL:

http://images.salsify.com/image/upload/s--hQ8_QZBh--/vv65lbghlabulrbt97kr.pdf

Number Of Cables:

Order Minimum:

1.000 KT

Order Multiple:

1.000 KT

RoHS Compliance:

Under Review

Spec Sheet:

Spec Link

Stock Type:

Shelf Stock

Tech Drawing Link:

Tech Drawing

Type:

Inline Splice

UNSPSC:

39121718

Voltage Rating:

5/8 kV

Weight:

9.500 L
