8 Watt LED PL; E26 Base; 27K/30K/35K/40K/50K CCT Selectable; Type B Ballast Bypass; 120-277 Volt

8 Watt LED PL; E26 Base; 27K/30K/35K/40K/50K CCT Selectable; Type B Ballast Bypass; 120-277 Volt

$
15
90
/ 1
  • Part Number: X709N
  • UPC: 00045923087608
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
8 Watt LED PL; E26 Base; 27K/30K/35K/40K/50K CCT Selectable; Type B Ballast Bypass; 120-277 Volt
Specifications
Details
Category:
Specialty Items
Subcategory:
Ballasts
Finish Family:
Frost
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K/5000K
Bulb Shape:
PL
Diameter:
1.38
EA Length:
1.65
Harmonized Codes:
8539.52.0091
Length:
6.5
Lumens:
950L/975L/1000L/1050L/1050L
Shap Carton Width:
1.65
Ship Carton Height:
7.28
Ship Weight:
0.24
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.19
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
120
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
Frost
Burning Position:
Universal
Candle Power:
200
Carton Cubic Feet:
0.0115
Cartons Per Unit:
1

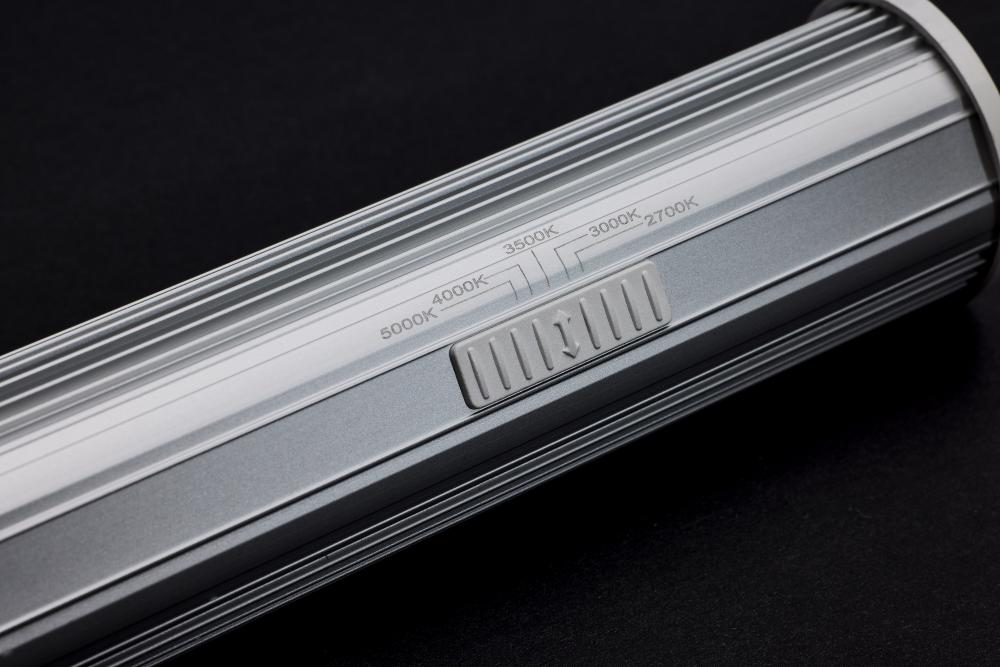

CCT Selectable:
Yes
CEC:
Non-Compliant - R8 <72
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
118.75/121.88/125.00/131.25/131.25 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
270 Degree Rotation
Feature 4:
Suitable for Use in Enclosed Fixtures
Feature 5:
Standard E26 Base
Feature 6:
Damp location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
18W
Housing Color:
White
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Frost
Location Rating:
Damp
Long Description:
SATCO NUVO's S8760 LED 8-watt, 5 CCT selectable PL lamp delivers versatile, energy-efficient lighting. Choose from five color temperatures, from warm white to daylight, to customize any environment. The standard E26 base and type B ballast bypass desig
Material:
Plastic
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED 8-watt, 5 CCT selectable PL lamps offer versatile and energy-efficient lighting solutions. These lamps allow you to choose from five different color temperatures, ranging from warm white to daylight, ensuring customizable lighting for
SDS class:
LED_Lamp
Short Description:
8W/LED/CFL/5CCT/E26
Style:
Transitional
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
8W
