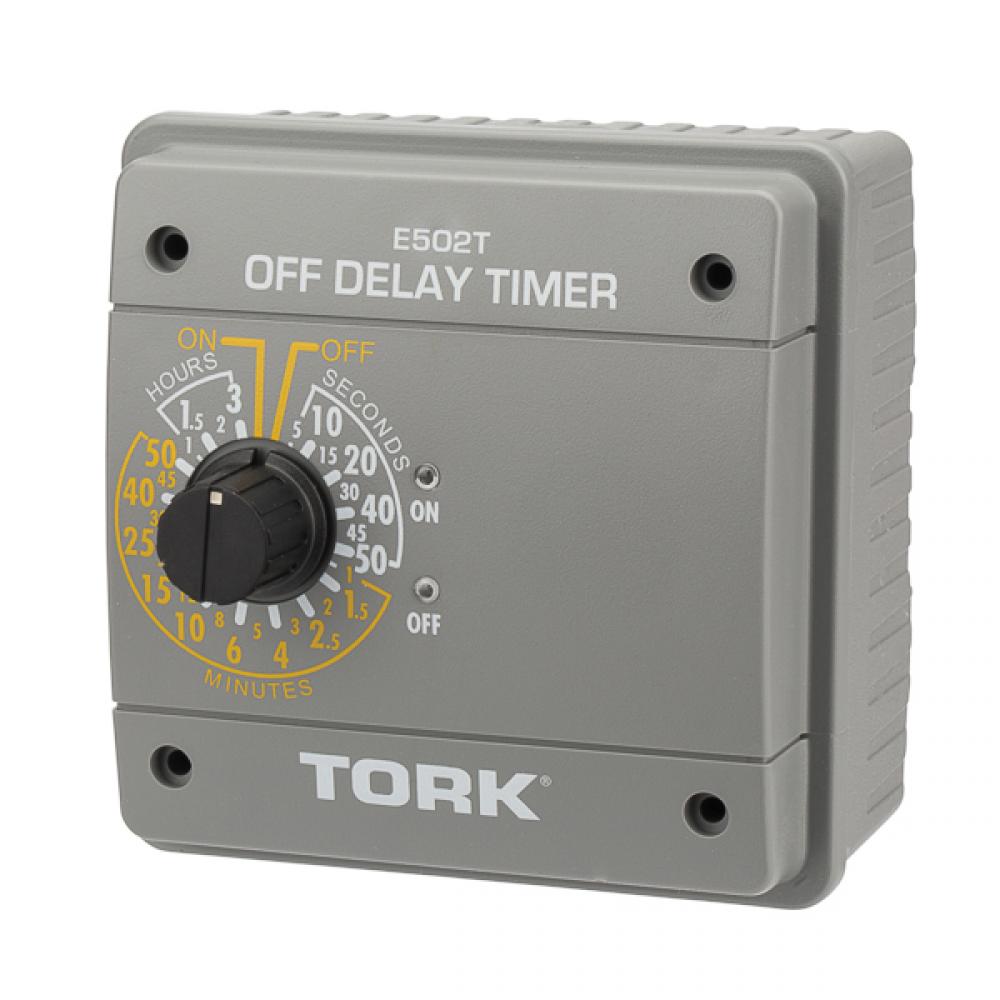

Tork OFF Delay Timer APPLICATIONS: Poultry and Livestock, Agriculture, Greenhouses, Oil Well Pumping, Ventilation, Process Control FEATURES: TIMER DETAILS: Dial sets 32 time delay durations from 5 seconds to 3 hours External switch starts interval ON Automatically turns OFF at the end of preset time External switch turns OFF TIMING ACCURACY: 1 of timing range INPUT VOLTAGE: 120/240VAC, 60Hz OUTPUT CONTACT: SPDT TERMINAL RANGE: #12 - #18AWG OPERATING TEMPERATURE: 32 degrees F to +122 degrees F (0 degrees C to + 50 degrees C) POWER CONSUMPTION: 16VA Maximum ENCLOSURE: Metal Indoor NEMA 4X MANUFACTURER: Tork, UPC: 786261825162 CONTACT RATINGS: GENERAL PURPOSE: 120-240VAC. NO: 20A NC: 10A RESISTIVE: 120-240VAC. NO: 20A NC: 10A PILOT DUTY: 120/240VAC. NO: 470VA NC: 275VA MOTOR: 120VAC NO: 1HP NC: 1/4HP 208-240VAC NO: 2HP NC: 1/2HP

Specifications

Details

Electrical Category:

Control And Automation

Electrical Subcategory:

Controls And Accessories

Electrical Subtype:

Timer Controls

Action:

SPDT

Application:

PoultryAnd Livestock-AgricultureOr Greenhouses-Oil Well Pumping-Ventilation-Process Control

Base:

Screw

Brand Name:

NSI

Brochure:

Manufacturer Brochure

Contact Rating:

120-240 VAC

Country Of Origin:

USA

Enclosure:

NEMA 4X Indoor

Environmental Conditions:

32 to + 122 F

Frequency Rating:

60 Hz

Initiation:

Contact

Length:

4.1250 IN

Mounting:

Screw Mount

Number Of Poles:

Operating Temperature:

32 to + 122 F

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

Phase:

Single Phase

RoHS Compliance:

Size:

L=4.812 - H=4.812 - W=3.312

Spec Sheet:

Spec Link

Special Features:

SPDT Off Delay Timer With 32 Time Durations From 5 Seconds To 3 Hours

Standard:

UL-CSA

Stock Type:

Shelf Stock

Sub Brand:

Digital Time Controls

Timing Range:

5 Seconds To 3 Hours

Type:

Off Delay Timer

UNSPSC:

39121523

Weight:

0.962 L
