Delay On Timer

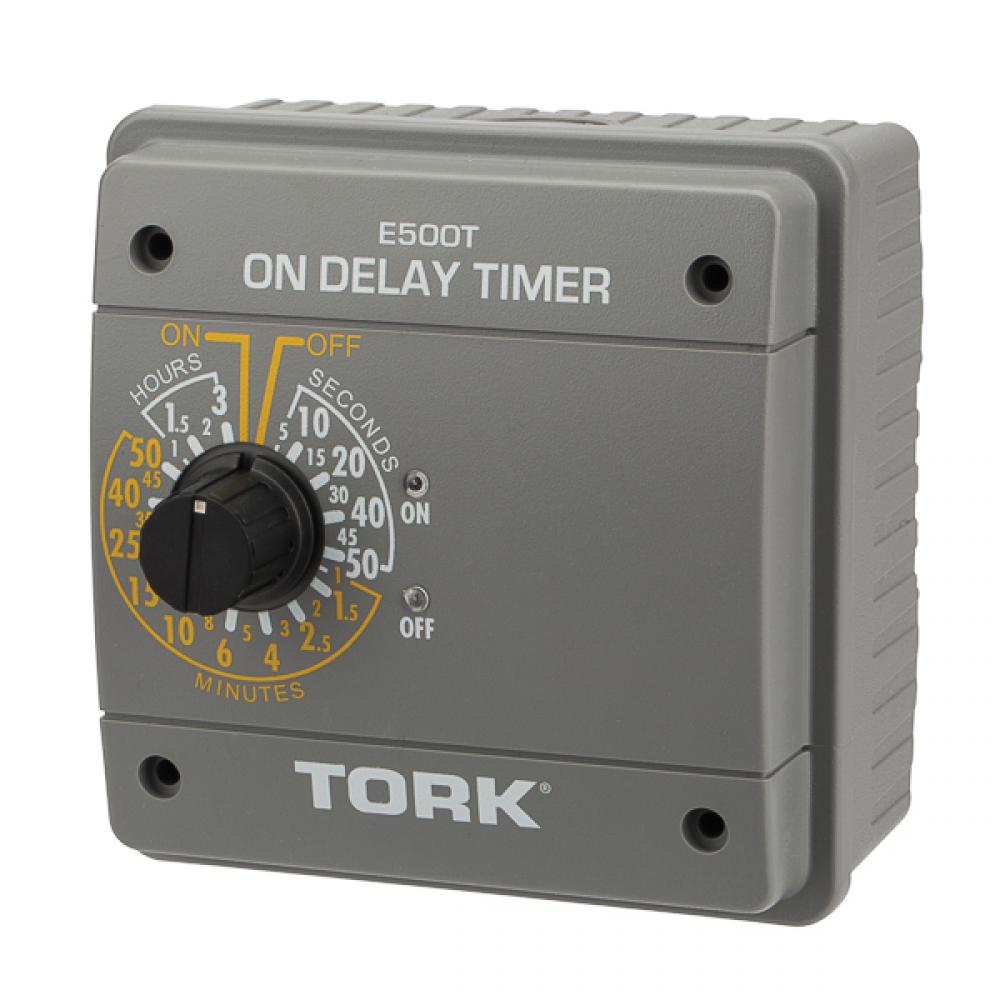

Tork ON Delay Timer APPLICATIONS: Poultry and Livestock, Agriculture, Greenhouses, Oil Well Pumping, Ventilation, Process Control FEATURES: TIMER DETAILS: Dial sets 32 time delay durations from 5 seconds to 3 hours External switch activated starts delay to ON Runs until external switch turns OFF TIMING ACCURACY: 1 of timing range INPUT VOLTAGE: 120/240VAC, 60Hz OUTPUT CONTACT: SPDT TERMINAL RANGE: #12 - #18AWG OPERATING TEMPERATURE: 32 degrees F to +122 degrees F (0 degrees C to + 50 degrees C) POWER CONSUMPTION: 16VA Maximum ENCLOSURE: Metal Indoor NEMA 4X MANUFACTURER: Tork, UPC: 786261825148 CONTACT RATINGS: GENERAL PURPOSE: 120-240VAC. NO: 20A NC: 10A RESISTIVE: 120-240VAC. NO: 20A NC: 10A PILOT DUTY: 120/240VAC. NO: 470VA NC: 275VA MOTOR: 120VAC NO: 1HP NC: 1/4HP 208-240VAC NO: 2HP NC: 1/2HP
