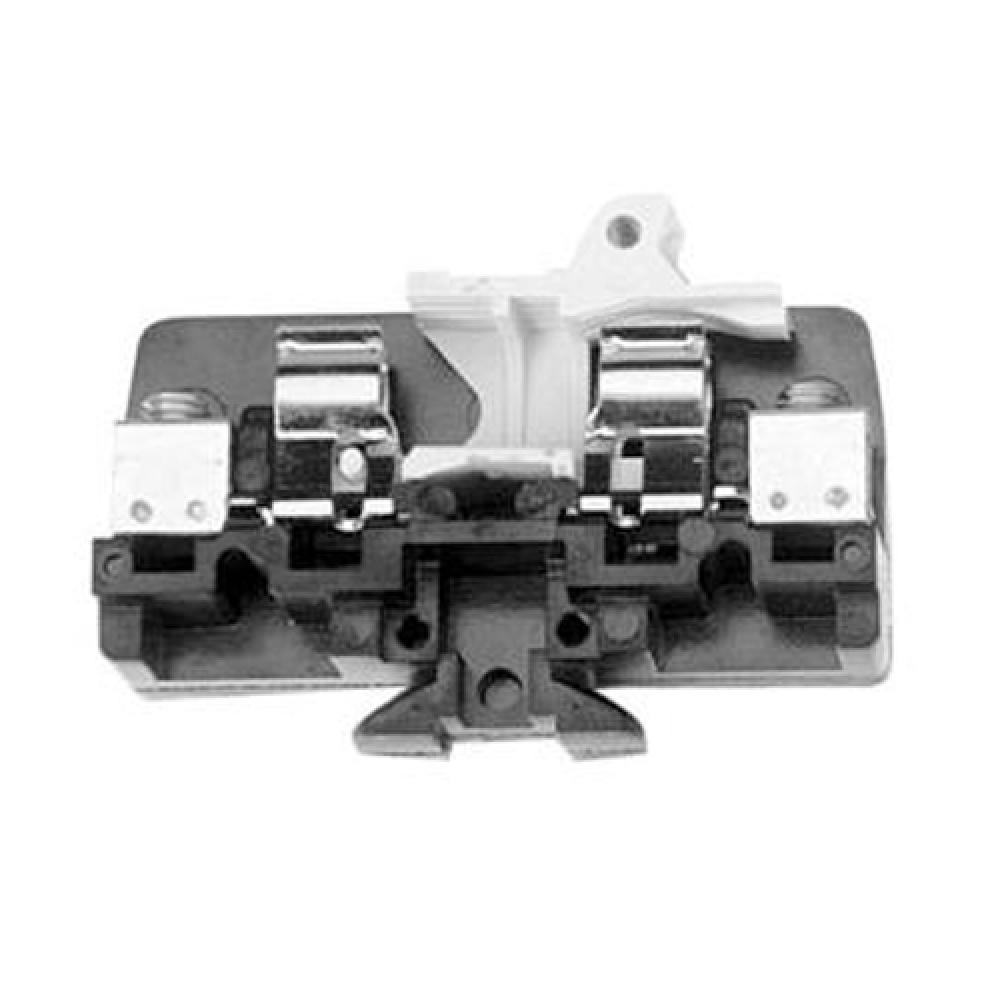

IDEAL, Fuse Or Switch, Material: Phenolic, Filled, Flame retardant Housing, Copper Alloy Contact, Steel Plated Screw, Mounting: Flat Base, End Section (Direct Mount), Size: 13/32 X 1-1/2 IN, Operating Temperature: 302 DEG F, Breakdown Voltage: 8400 VAC, Frequency: 60, Ul High Voltage Arc Testing: 0.49 - 0.58 IN/MINT, Water Absorption (24 Hr Pct Weight Gain): 0.45 PCT (Per ASTM D570), Flammability: 94V-1 (Per UL94), Chemical Resistance: Resistant To Acids, Alkalies, Aliphatic Hydrocarbons And Ketones (Per ASTM D5343), Radiation Resistance (ergs G1 C): 2.7 X 10 Power 7 Min, Center-to-center Spacing: 0.750 IN CL: 16 Circuits Per Foot, Fuse Type: Ferrule-Type Cartridge

Specifications

Details

Electrical Category:

Fuses Relays And Circuit Breakers

Electrical Subcategory:

Fuses

Electrical Subtype:

Fuse Block

Material:

Phenolic, Filled, Flame Retardant Housing, Copper Alloy Contact, Steel Plated Screw

Size:

13/32 X 1-1/2

Brand Name:

IDEAL

Country Of Origin:

MEX

Length:

0.1200 IN

Mounting:

Flat Base, End Section (Direct Mount)

Operating Temperature:

302

Order Minimum:

25.000 EA

Order Multiple:

25.000 EA

RoHS Compliance:

Yes

Spec Sheet:

Spec Link

Special Features:

Features: Provide In-Line Circuit Protection For Any Circuit Or Group Of Circuits; Three Contact Styles For Terminated Or Unterminated Wire Are Conservatively Rated To 30A; Remove, Check And Replace Fuses Safely And Quickly Switch-Action Fuse Blocks Open C

Standard:

MIL-Spec F-15160, CSA, RU Listed, RoHS

Stock Type:

Shelf Stock

UNSPSC:

39121629

Weight:

0.040 L
