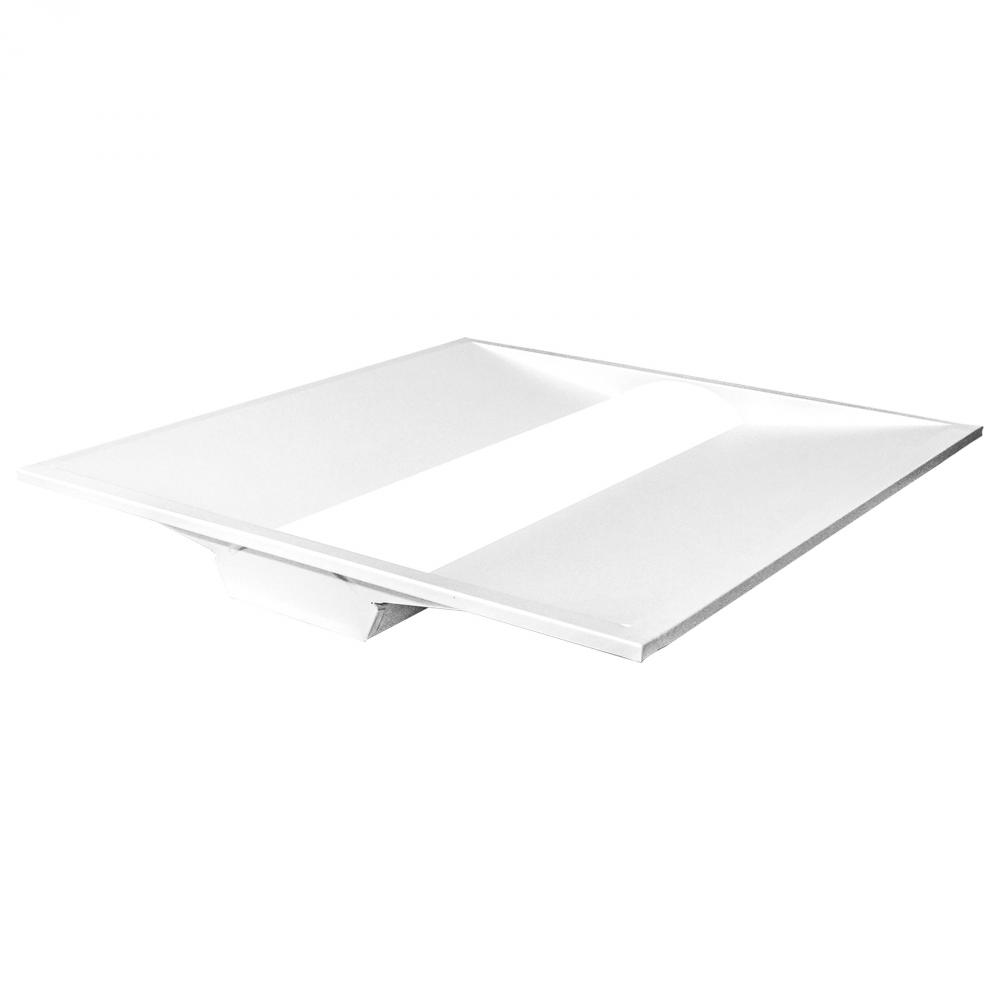

2X2 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens

2X2 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens

$
348
00
/ 1
  • Part Number: A6HYF
  • UPC: 00045923655173
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
2X2 Emergency Backup; Single Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable
Specifications
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Troffer
Sub Category:
Center Basket
Additional Info:
90 Minute Battery Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
25.71
Each Length:
25.51
Each Width:
4.33
Length:
23.74
Lumens:
3300L-4400L
Warranty:
5 Year Limited - Fixtures
Amps:
0.300-0.108/0.350-0.126/0.400-0.144A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
80+
Dimmable Function:
0-10V Dimming
DLC Classification:
Standard
DLC Primary Use:
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube:
1.6435
Each Quantity:
1
Efficacy:
110.00 LPW
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable ( 3500K, 4000K, 5000K)
Feature 2:
3 Wattage Selectable (30W, 35W, 40W)
Feature 3:
0-10V Dimmable
Feature 4:
DLC Listed
Feature 5:
Length: 23.74 inches X Width: 23.74 inches X Height: 3.02 inches
Finish Family:
White
Fixture shape:
Square
Flicker Free:
Yes
Has Driver:
Yes
Has Emergency Battery:
Yes
HID Equiv:
70W-100W
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO NUVO's 65-692 2x2 Emergency Backup Single Basket square troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technol
Material:
Steel
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Panel Size:
2x2
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
10
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our t
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
2X2 EM SINGLE BASKET TROFFER
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
7.72
