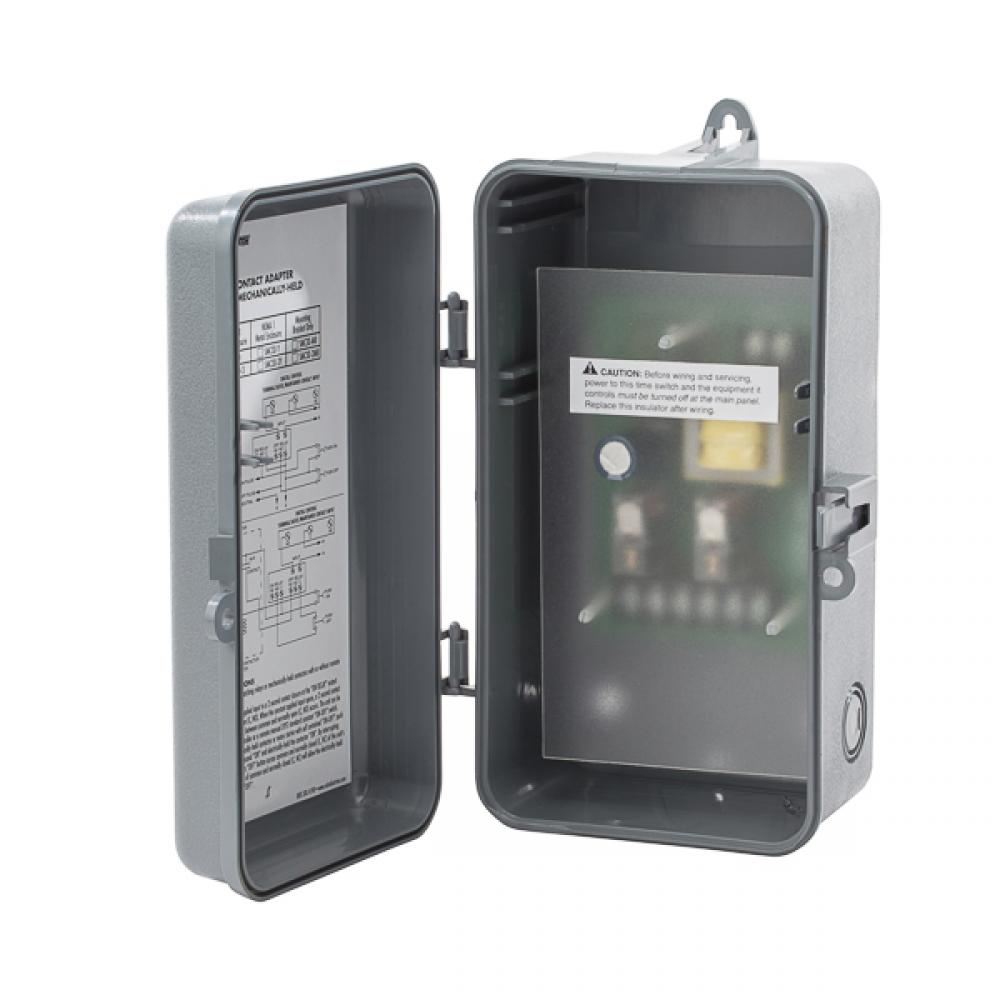

Momentary Contact Adapter 120V

Tork Momentary Contact Adapter - 120V APPLICATIONS: Converts maintained contacts for pulse switching Timer to latching contactor control Photocell to latching contactor control Signaling FEATURES: MAINTAINED INPUT: Accepts maintained input power from any 120 Volt control. When power is applied or removed, a short contact closure (pulse) is created on the dry output contacts. MOMENTARY OUTPUT: Provides two dry output contacts. The ON contact provides a 2 second contact closure (pulse) when power is applied to the input contacts. The OFF contact provides a 2 second pulse when power is removed from the input contacts. MANUFACTURER: Tork, UPC: 786261520111 CONTACT RATINGS: VOLTAGE: 120 VAC, 50/60 Hz TERMINAL RANGE: #12 - #18 AWG OPERATING TEMPERATURE: -31 degrees F to 131 degrees F (-35 degrees C to 55 degrees C) POWER CONSUMPTION: 6VA Max ENCLOSURE: Noryl Indoor/Outdoor NEMA 3R with lockable hasp. RESISTIVE: 120VAC, 10A NO, 10A NC GENERAL PURPOSE: : 120VAC, 10A NO, 10A NC MOTOR: 120VAC, 1/4HP
