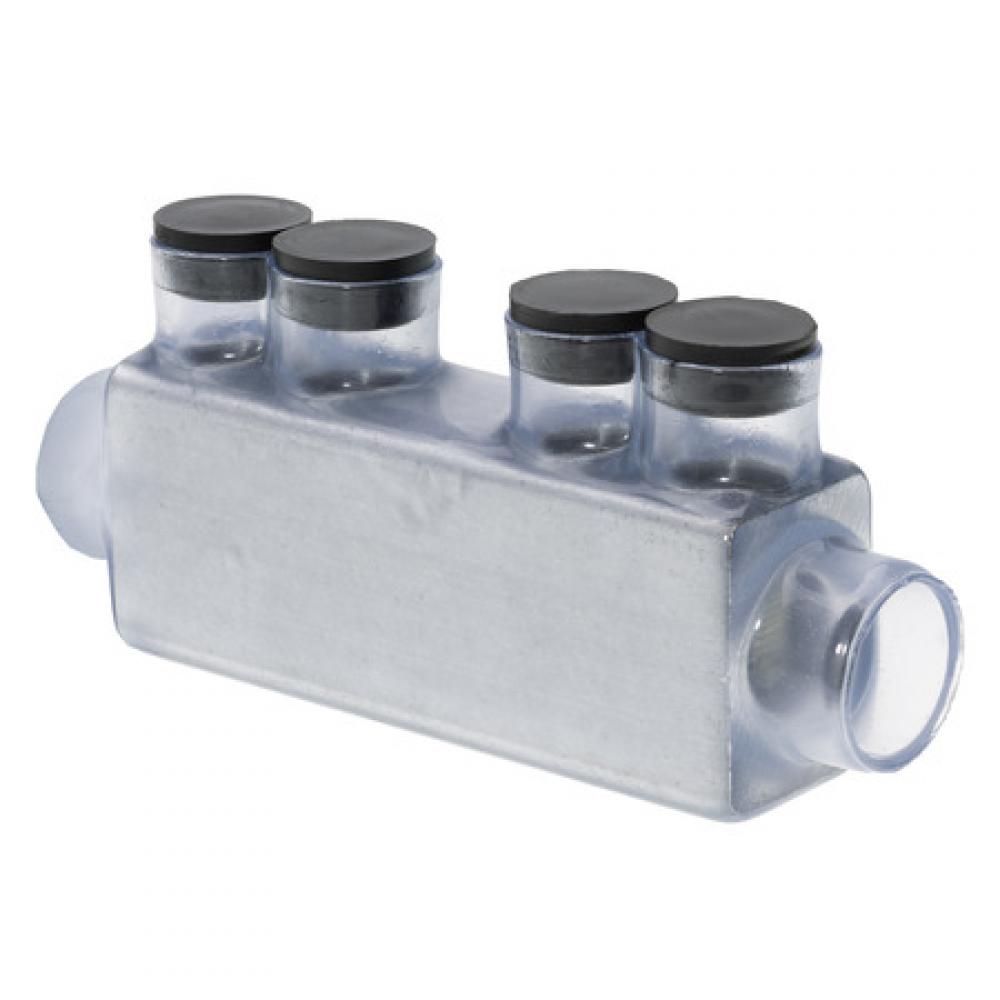

The Polaris ISRH-750C Heavy-Duty Multi-Tap In-Line Entry Vision Tap Connector features 2 ports sized for 750 MCM â€“ 1/0 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the double hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies, and comes packaged in a clear plastic bag with a mounting hole for hanging in retail displays. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Specifications

Details

Electrical Category:

Lugs Plugs And Connectors

Electrical Subcategory:

Connectors And Accessories

Application:

Wire Termination

Brand Name:

NSI

Color:

Clear

Country Of Origin:

USA

Enclosure:

Clear Plastisol

Environmental Conditions:

Dry Location Only

Finish:

Plastisol

Installation Link:

Installation Instructions

Length:

7.2500 IN

Material:

Plastisol

Number Of Conductors:

Number Of Poles:

Order Minimum:

1.000 EA

Order Multiple:

1.000 EA

RoHS Compliance:

Yes

Size:

L=7.250 - W=1.750 - H=3.250

Spec Sheet:

Spec Link

Special Features:

750-250 MCM - Dual Rated

Standard:

cULus

Stock Type:

Shelf Stock

Sub Brand:

Polaris Vision Tap

Tech Bulletin Link:

Technical Bulletin

Temperature Rating:

Type:

IN-Line Splicer/Reducer

UNSPSC:

39121409

Voltage Rating:

600

Weight:

1.850 L

Wire Size:

750 MCM-1/0 AWG

Wire Type:

Class B & C
