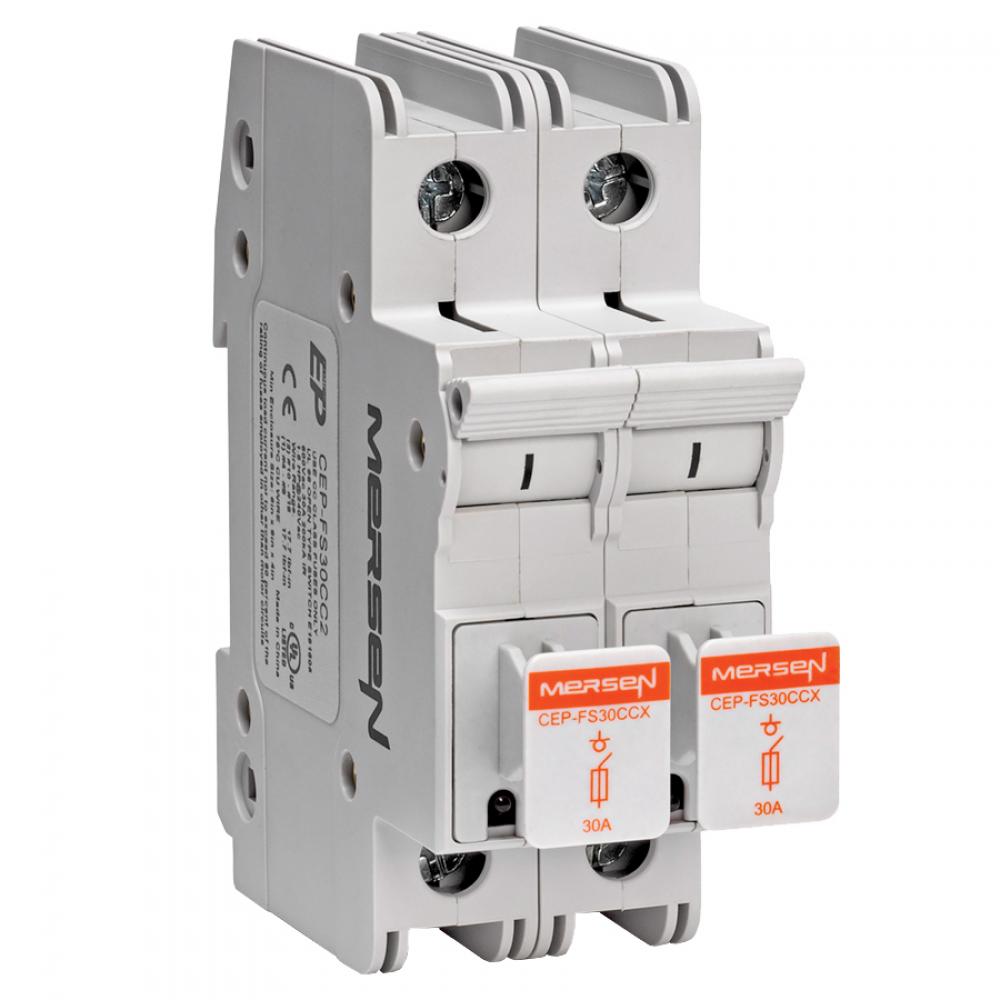

UL 98 Fusible Switch 600VAC Class CC 30A 2-Pole

UL 98 Fusible Switch 600VAC Class CC 30A 2-Pole

$
1,461
16
/ EA / 6 EA
($243.53 / 1)
  • Part Number: 30J92TC
  • UPC: 00782001500436
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
UL 98 Fusible Switch 600VAC Class CC 30A 2-Pole
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Amperage Rating:
30
Application:
For use as main/feeder device and in conjunction with CC fuses Is rated for branch circuit protection
Brand Name:
Mersen
Country Of Origin:
CN
Mounting Type:
DIN Rail
Number Of Poles:
2
Order Minimum:
6.000 EA
Order Multiple:
6.000 EA
RoHS Compliance:
Yes
Size:
3.65 x 1.39 x 3.4
Spec Sheet:
Spec Link
Special Features:
30A Fused disconnect UL Listed Smaller footprint compared to a traditional Class CC disconnect Accepts Class CC 30A fuses 35mm DIN rail mounted Built-in lockout/tagout feature 200kA SCCR rating 75°C CU Wire
Standard:
cULus Listed file No. E191605 UL 98 - Open type switches CSA C22.2 No.4 - enclosed and deadfront switches IEC 60529 degree of protection IP20 For motor HP ratings at full load current refer to UL table 50.1 in UL508A
Stock Type:
Shelf Stock
Type:
UL 98 Fusible
UNSPSC:
39122233
Weight:
.025 lb
